Inside the iPhone 17 Pro Max: Breaking Down the Most Challenging Repairs

The iPhone 17 Pro Max isn’t just another phone; it’s Apple flexing every ounce of engineering muscle it has. Sleeker, faster, smarter and yes more complicated to repair than ever. Beneath that flawless exterior lies a puzzle of aluminum frames, high-density components, and adhesives strong enough to make technicians groan.

If you own a repair shop in the USA or stock up on iPhone replacement parts, knowing where this model fights back can save hours of rework. Let’s crack it open (figuratively, of course) and see what really makes the iPhone 17 Pro Max a masterpiece and a challenge.

What’s New Inside Apple’s Flagship


This generation marks a quiet but meaningful design shift. Apple dropped the titanium experiment and returned to a heat-forged aluminum unibody, sculpted around a new “camera plateau.” It feels light in hand but leaves little room for error once you start prying things open.

The Unibody Frame & Camera Plateau




That sweeping metal back isn’t a full glass panel anymore. Instead, the rear housing is aluminum, with a small glass window around the triple-lens camera plateau. It looks incredible until you try removing it.

Technicians now deal with precision adhesives and delicate glass seams hugging the camera mount. You’ll need even heat, the right pry tools, and a calm hand. For replacement glass sections or full housings, check iPhone back glass and housing parts so you’re stocked before the first 17 Pro Max walks through your door.

Ceramic Shield 2: A Tough but Tricky Front


Apple’s Ceramic Shield 2 protects the front display better than any prior model, yet its removal still ranks high on the difficulty scale. The 6.9-inch OLED panel is massive, edge-sealed, and tightly bonded.

There’s no “new thinner fusion layer” magic here just the same high-density lamination that demands careful heat control. The trick is temperature balance: too cold, and it resists separation; too hot, and you risk damaging the OLED or nearby sensors. Stock up on factory-tested screens from Parts4Cells iPhone display replacements for dependable color and Face ID performance.

Logic Board & Thermal System


Inside, Apple reorganized the A19 Pro chipset onto a stacked logic board cooled by a vapor chamber confirmed by teardown specialists. It’s compact, elegant, and unforgiving. Cables cross layers, and the board connects directly under the cooling shield.

When a logic board fails, replacement is safer than deep repair unless you’ve got micro-soldering expertise. The iPhone logic board parts catalog keeps tested boards on hand so you can swap, re-seat the cooling pad, and get back to business fast.

Repairs That Test Every Technician


Let’s be real this device isn’t meant for beginners. Some repairs require every ounce of focus, patience, and muscle memory you’ve got.


1. Screen and Front Glass Replacement


Beautiful display, brutal removal.

  • Stronger adhesives cling along the perimeter.
  • The OLED panel’s size makes heat distribution harder.
  • Flex cables sit deep in the mid-frame easy to over-stretch.
Go slow, lift evenly, and avoid over-heating the edges. Having spare panels from Parts4Cells’ screen inventory means you won’t lose momentum mid-job if one breaks.


2. Rear Housing and Camera Plateau Glass


Forget the old “laser separation” talk that was for glass-back models. The 17 Pro Max’s main shell is aluminum. The only glass area is the small pane surrounding the camera plateau.
  • Gentle, localized heat and micro-tools work best.
  • Avoid twisting; the aluminum frame warps easily.
  • Always check alignment around the lens mounts.
Keep rear glass and housing replacements on hand OEM-fit only, or gaps will show.


3. Logic Board Service or Replacement


Removing the stacked board feels like solving a puzzle blindfolded. Shields, screws, and cooling pads overlap in layers. Use steady heat and anti-static tools; don’t force anything.

If the board itself is dead, save yourself the micro-solder marathon and grab a tested replacement board from Parts4Cells. It’s faster, safer, and keeps warranty claims away.


4. Camera System Repairs

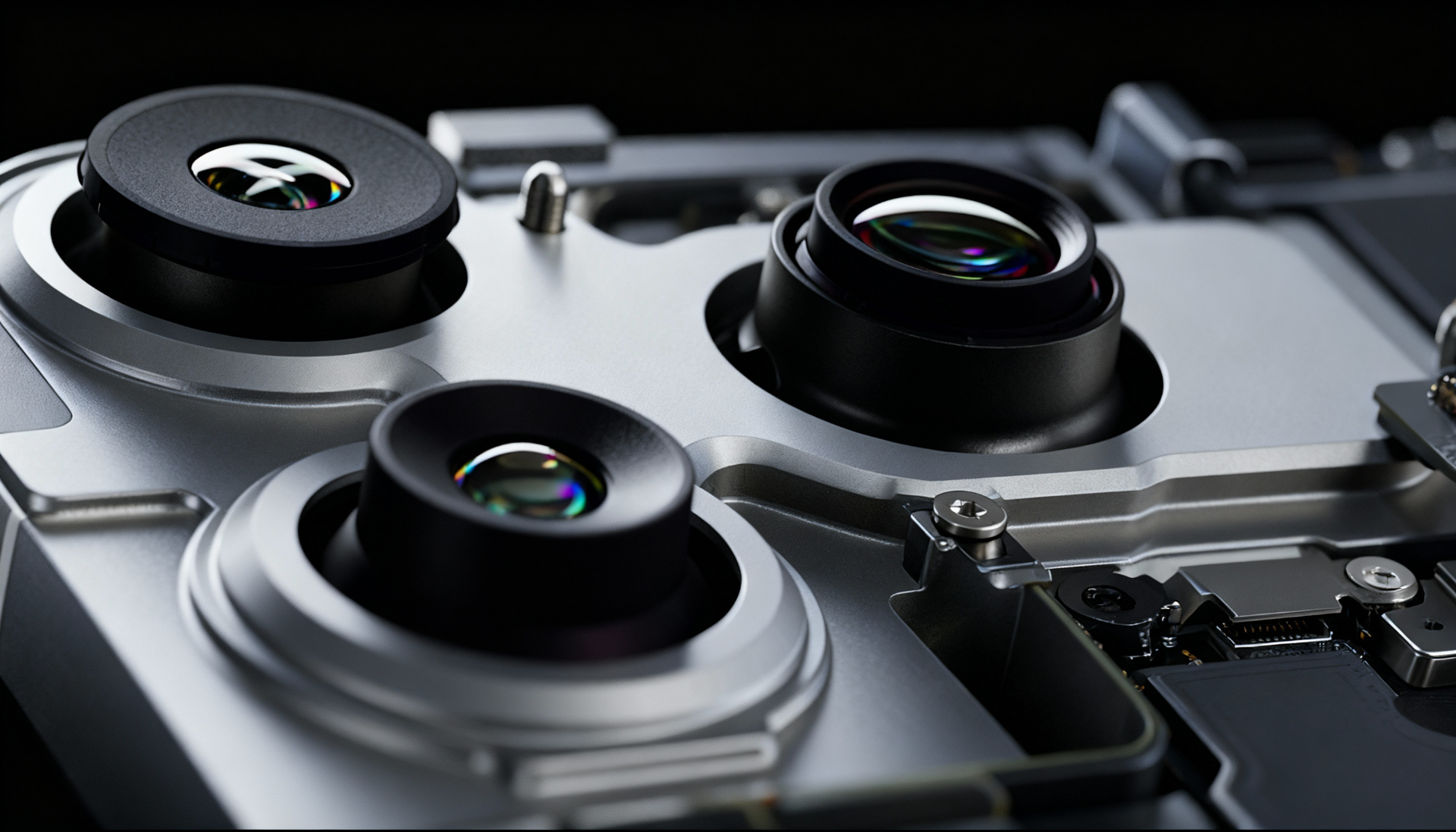

That 48-MP Fusion triple-camera array delivers jaw-dropping shots but servicing it’s another story.
  • Each module demands calibration after install.
  • Mounting screws have torque-specific ratings.
  • Dust or a hairline misalignment ruins focus instantly.
When in doubt, go for pre-calibrated camera module replacements designed for this exact chassis.

5. Battery and Charging Assembly


Here’s some rare good news: Apple finally made battery removal a bit easier. A tray-style design replaces the old industrial adhesive nightmare. Still, connectors are delicate, and bending the tray can kill alignment.

The USB-C port continues from earlier Pro models, now running USB 3 (10 Gb/s). Its sub-board sits low, so use minimal force during extraction. Keep genuine charging port replacements on standby for clean installs.

The American Repair Market Angle


With a retail price hovering well above $1,000, owners won’t replace these phones easily. That means repair demand across the USA is about to spike fast.

Shops prepared with screens, camera parts, and batteries will capture that early business. Six months in, expect logic board and connector issues to follow.

That’s where Parts4Cells becomes indispensable. Their wholesale iPhone parts are tested, shipped quickly from U.S. facilities, and compatible right out of the box. For independent techs and multi-location shops alike, consistency matters more than ever.

Hidden Traps You Should Know


Even experienced techs get caught off-guard by Apple’s design quirks.

Reinforced Adhesives

Water resistance is stronger than ever great for users, stubborn for you. Apply controlled heat across the perimeter; uneven warming can warp the frame.

Tightly Integrated Sensors

The TrueDepth and Face ID modules remain separate but tightly paired with the display housing. Damage one, and you’ll need paired recalibration or module replacement. Don’t promise “quick fixes” here.

Calibration After Assembly

Once re-sealed, always run display, camera, and battery diagnostics. Apple’s official calibration tools are limited to AASP or IRP members, so independent shops should rely on trusted third-party testing apps.

Tool Variations

You’ll face pentalobe, tri-point, and Phillips screws sometimes within centimeters. Label and sort every screw; even pros mix them up.

Practical Pointers for Technicians

These small habits separate flawless repairs from returns.

Before You Begin

  • Confirm the model code one digit off means incompatible parts.
  • Power down completely and discharge static.
  • Backup the device if the customer allows.

During Repair

  • Keep steady, even heat.
  • Photograph each step; it’ll save headaches later.
  • Never pull connectors at an angle lift vertically.

After Reassembly

  • Test Face ID, cameras, haptics, and display touch.
  • Clean residual adhesive and re-seat water seals.
  • Log serial numbers for your warranty tracking.

Having replacement screens, batteries, and small components in your workspace means zero downtime when surprises hit.

Why Quality Parts Make or Break the Job


Precision matters. Using generic parts on a flagship like this is like putting budget tires on a race car you might finish the job, but not safely.

With Parts4Cells, you’re covered:

  • Quality control: Every item is multi-tested.
  • Perfect fit: Matches Apple’s internal dimensions exactly.
  • Fast shipping: U.S. fulfillment, minimal waiting.
  • Expert support: Real technicians on call for compatibility help.

Before the rush of broken screens arrives, check the iPhone parts section and stock what you’ll need most.

Final Take

The iPhone 17 Pro Max is Apple at its boldest streamlined, powerful, and engineered to push both performance and technicians to their limits. It’s not unrepairable, but it punishes guesswork.

With the right training, steady hands, and reliable suppliers, any shop can master it. So prep your bench, charge the heat gun, and partner with Parts4Cells’ wholesale iPhone parts. Because on devices this advanced, precision parts aren’t optional they’re the whole game.
